Enter the Dingxi Primary School Project

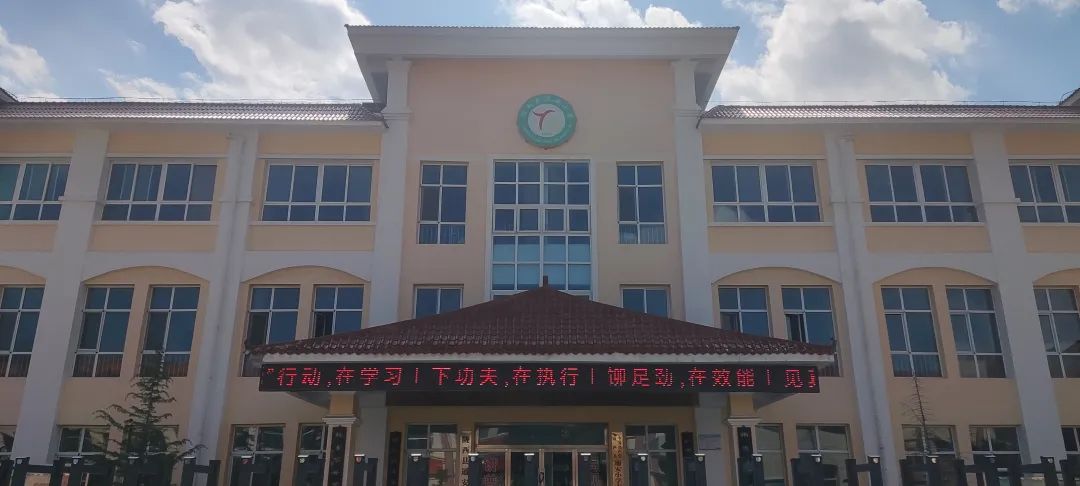

The clean energy heating renovation project of Tong'an Primary School is located in Longxi County, Dingxi City, Gansu Province. The heating area is 8600m². It originally used central heating, and the temperature in the heating room did not meet the standard. It also led to a waste of resources during the winter vacation and increased the school's cost burden.

2. Project background

The project originally used central heating. Since the project is located at the edge of the heating area and the end is not hot, the local education bureau and school have a headache, and parents are also worried about their children getting cold. Later, after the Longxi County Education System used BANDON air source heat pumps for large-scale heating renovation, the school was also included in the renovation of heating equipment.

3. Equipment Selection

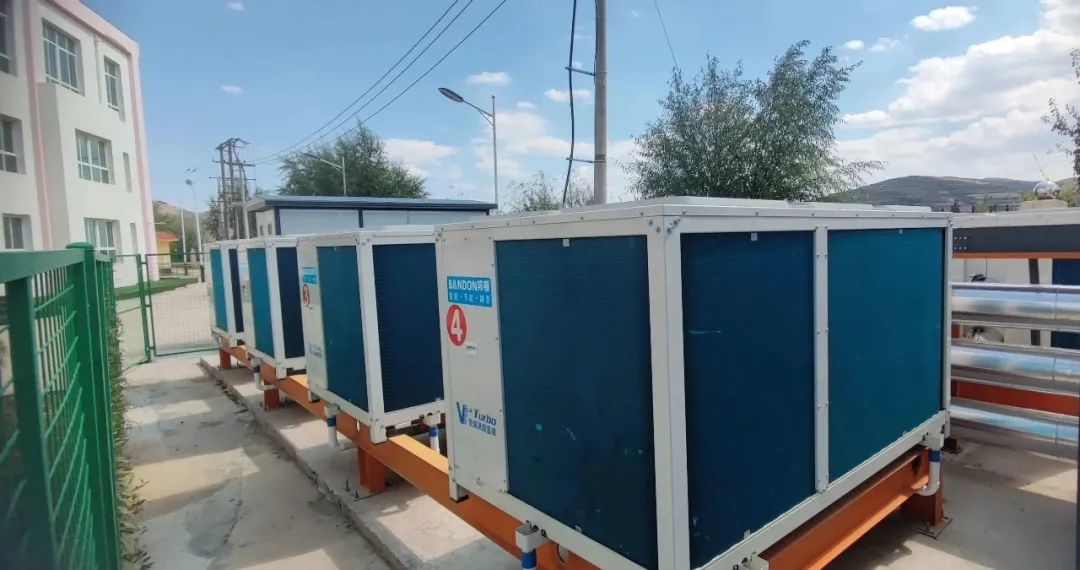

Seven BANDON 60HP fourth-generation full DC ultra-quiet inverter heat pump units were selected.

4. Equipment Installation

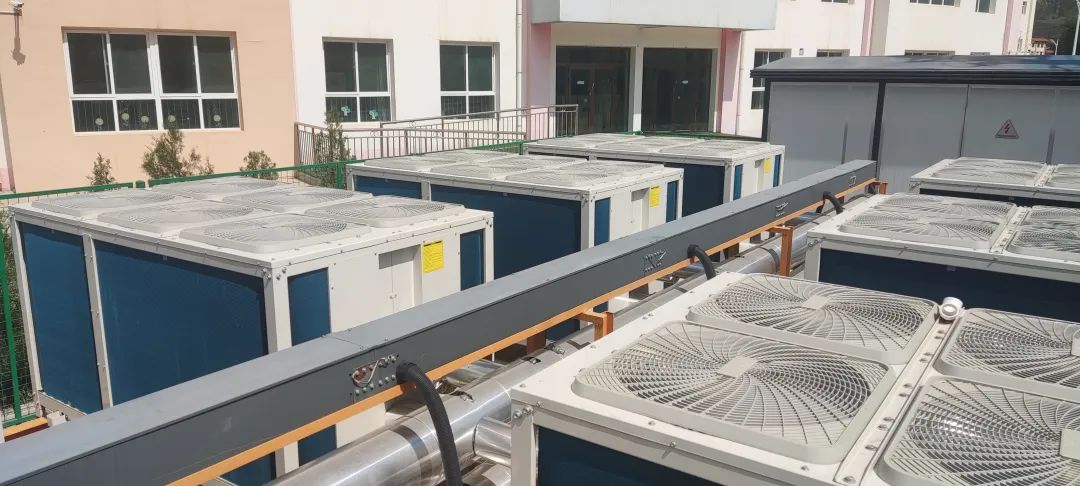

The heating end uses a radiant radiator (radiator), which does not require additional replacement and reduces costs. Since the installation location is close to the classroom, a BANDON ultra-quiet air source heat pump unit is used this time, with the lowest operating noise as low as 58dB.

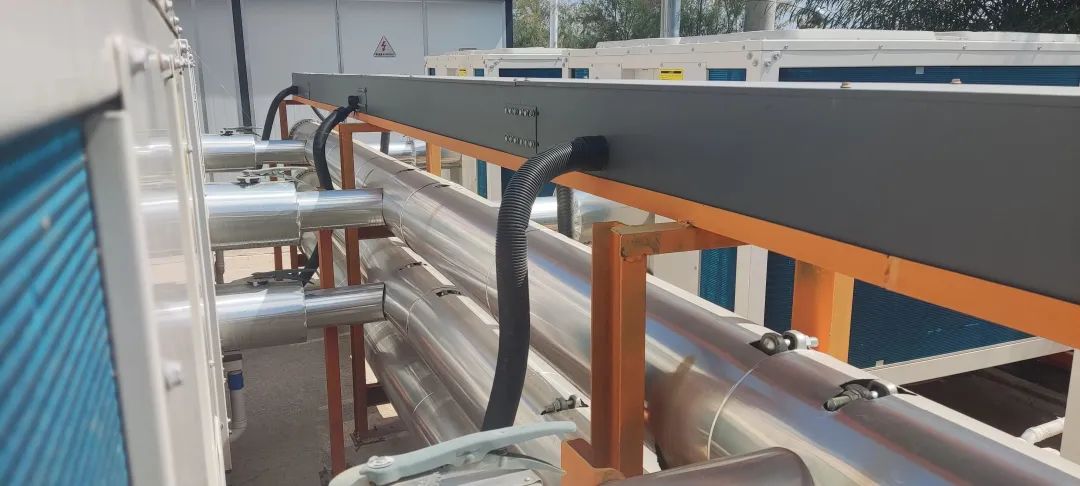

The school's teaching buildings and other buildings are relatively scattered. Although the heating pipelines are long, BANDON still uses integrated insulation pipes to ensure heating thermal efficiency.

5. Operation Status

Before the air source heat pump heating renovation, the indoor temperature was below 15 degrees half of the time. The temperature was not guaranteed and the heating was not up to standard. After the BANDON air source heat pump heating renovation, the indoor temperature of the school was stable at 18-20 degrees Celsius, reaching required by the local education bureau.

At the same time, the usage cost is lower than that of central heating. From the "2019 Heating Fee Standards", we know that the school heating fee is 1 USD/month·square meter, the heating period in Gansu is 4 months, and the school area is 8600m², excluding winter vacation For one and a half months, the comprehensive heating season cost in the past was 22,000 USD; according to project estimates, after using the BANDON air source heat pump, the entire project's winter operation energy consumption was about 220,000 kilowatt hours. Calculated based on 0.07 USD per kilowatt hour, the comprehensive heating season cost was 15,700 USD, the heating cost is saved by 27% compared with urban thermal heating.

6. Party A' s Evaluation

Education is no small matter. BANDON shoulders social responsibilities and has established good communication channels with the school to understand the students' problems at the first time. From the evaluation of Tong'an Primary School, we can know:

①The thermal energy is strong, which is greatly improved compared to the past central heating;
②Although it is close to the teaching building, there is no noise during operation;
③Heating costs are significantly reduced, effectively saving costs;

④ After-sales service is guaranteed, and the cleaning machine is inspected and maintained regularly.

7. Product Advantages

This project uses 60HP fourth-generation full DC high-power ultra-quiet inverter heat pump unit. The unit has undergone rolling technology upgrades, multiple optimization verifications, and strict performance testing. Using the 4th generation electronic control technology, the product is more stable; it exceeds national first-class energy efficiency, achieves strong heating performance, and significantly improves heating problems in winter.

The heating capacity of a single device is as high as 172kW, and the heating capacity attenuation is small when operating under low temperature conditions. Compared with conventional units, the heating capacity can be improved by up to 25%. It is well received by users. Its advantages are as follows:

· Low Temperature and Strong Heat, Super Energy Efficiency

It adopts Hitachi scroll ultra-quiet compressor specially designed for ultra-low temperature working conditions, high-speed scroll + EVI technology, breaking through the low-temperature limit geographical restrictions; axial flexible adjustment, with high volumetric efficiency; rare earth permanent magnet motor, Sine wave speed regulation technology, stepless speed regulation, high efficiency and energy saving;

·Ultra-wideband Operation, Easy to Use all Year Round

For heating in winter, the ambient temperature can be as low as -35℃, and for cooling in summer, the ambient temperature can be as high as 55℃; in the cold and summer seasons all year round, say goodbye to hot and cold seasons, easy application without stress; ultra-wide outlet water temperature, The maximum outlet water temperature of the unit is 60℃; the ambient temperature is -20℃, and the outlet water temperature is as high as 55℃;

·The Fourth Generation Electronic Control Technology, More Stable Performance

Brand new fourth-generation electronic control technology, hardware upgrade, Texas Instruments TI high-computing chip from the United States, and Infineon semiconductor components from Germany, more stable performance; film capacitors with higher precision and longer life; fourth-generation program, enhanced electronic control low-temperature operation, Increase the low temperature water temperature range; precise defrost logic, intelligent defrost without delay;

·Deep Sea Level Silent Technology

Keel-type DC fan motor, rare earth permanent magnet rotor, maximizes performance; special aluminum-magnesium alloy blades, 6-fan synergy, large air volume and low speed, bringing extremely low noise, low-frequency operation as low as 50 decibels; fourth-generation control technology, Stepless frequency conversion and uniform speed adjustment; multiple compressors operate cooperatively, and the failure of one system module does not affect the operation of other systems;

·Intelligent Remote Control Puts Technology at Your Fingertips

It comes with smart cloud service, recording when power is turned on, remote troubleshooting, and solving after-sales problems; the smart wired controller has three operating modes: automatic mode, strong heat mode, and silent mode, and the mobile app is easy to operate, even for the elderly and children.
